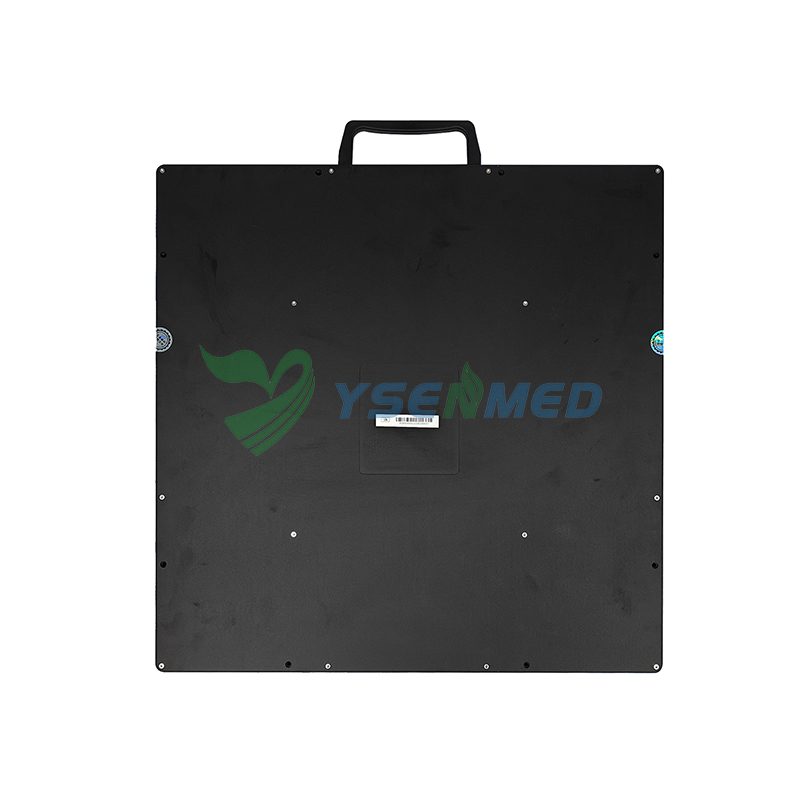

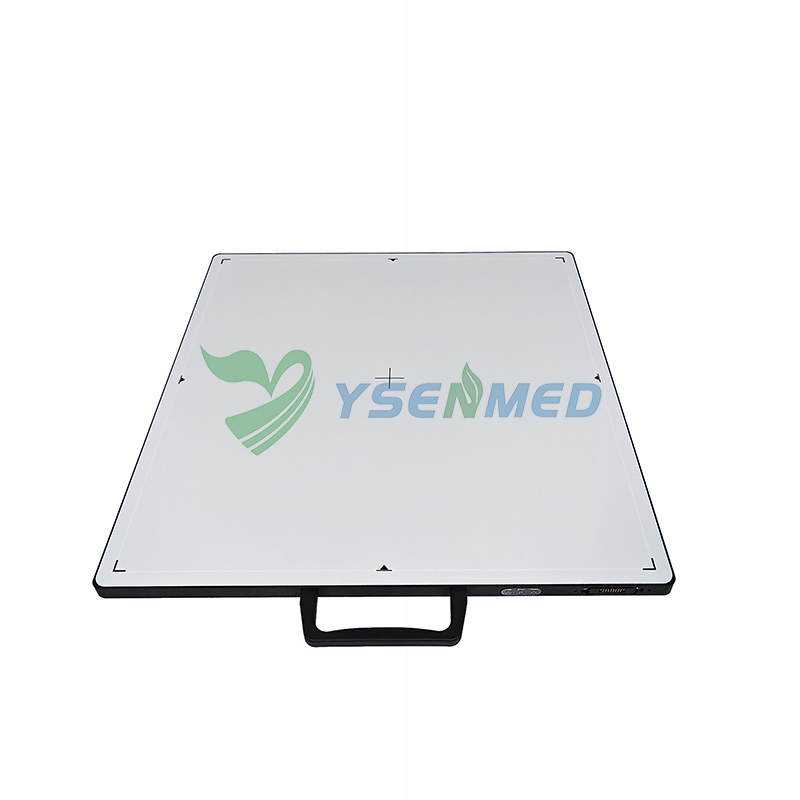

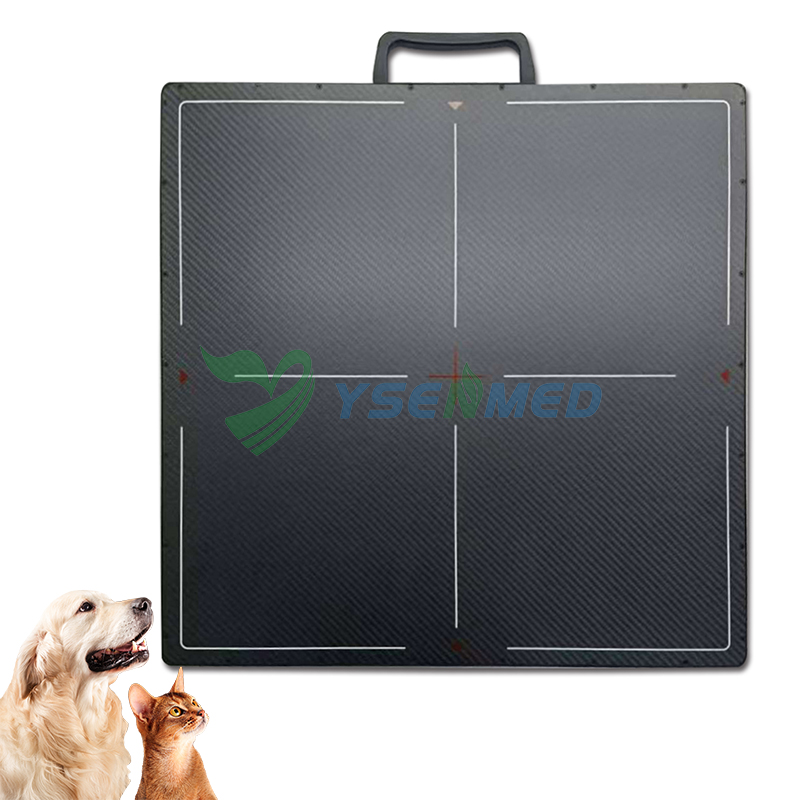

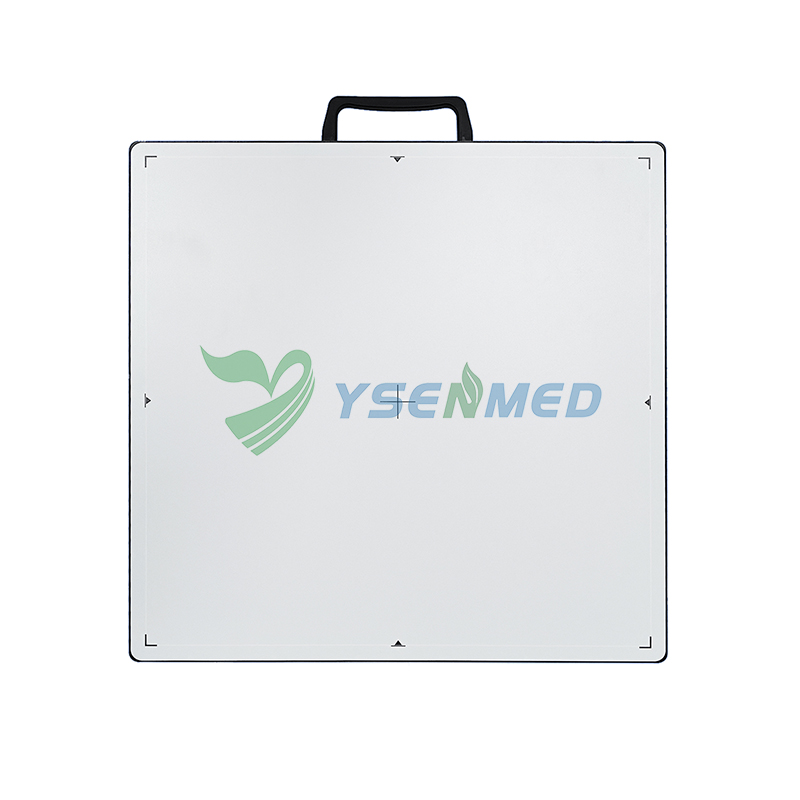

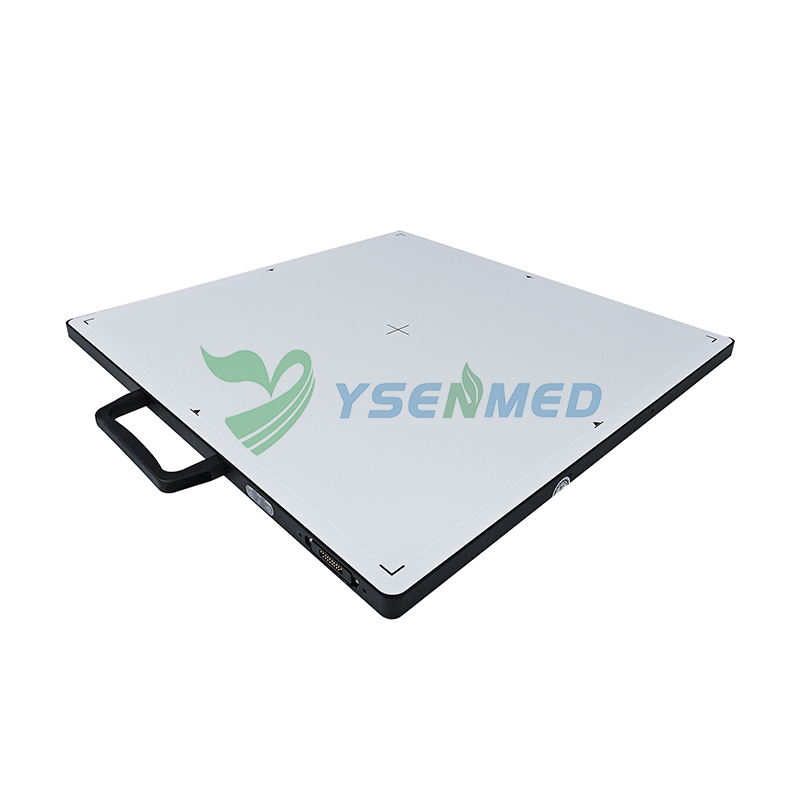

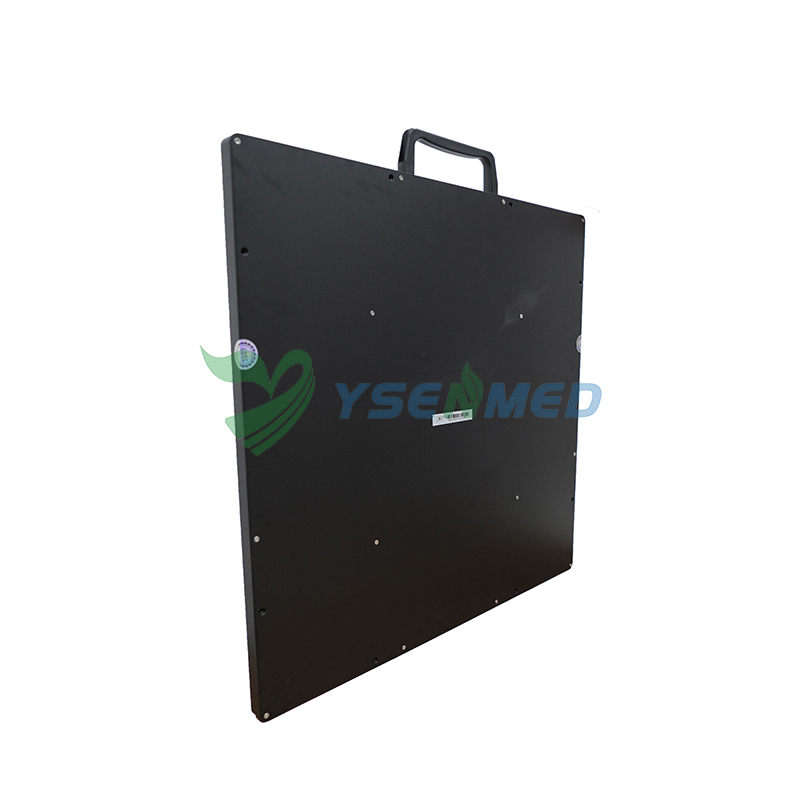

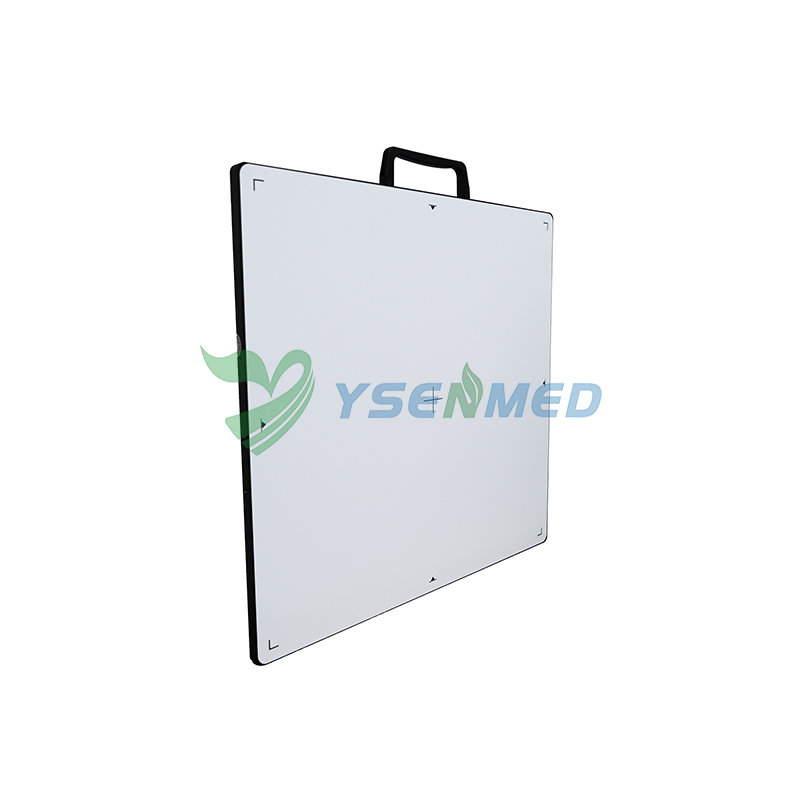

YSENMED Veterinary Wired Flat Panel Detector YSFPD4343R VET

Model: YSFPD4343R VET
YSENMED YSFPD4343R VET 17×17″ Veterinary Flat Panel Detector with 139 µm pixel pitch, direct‑deposition CsI, low‑dose, minimized motion blur & simple DR interface for animal imaging
  • ModelYSFPD4343R VET
  • BrandYSENMED
  • PriceGet price
  • MOQ1
  • Ship FromGuangzhou, China
  • ShippingStandard Export Package
  • Description Get Price Review(0)

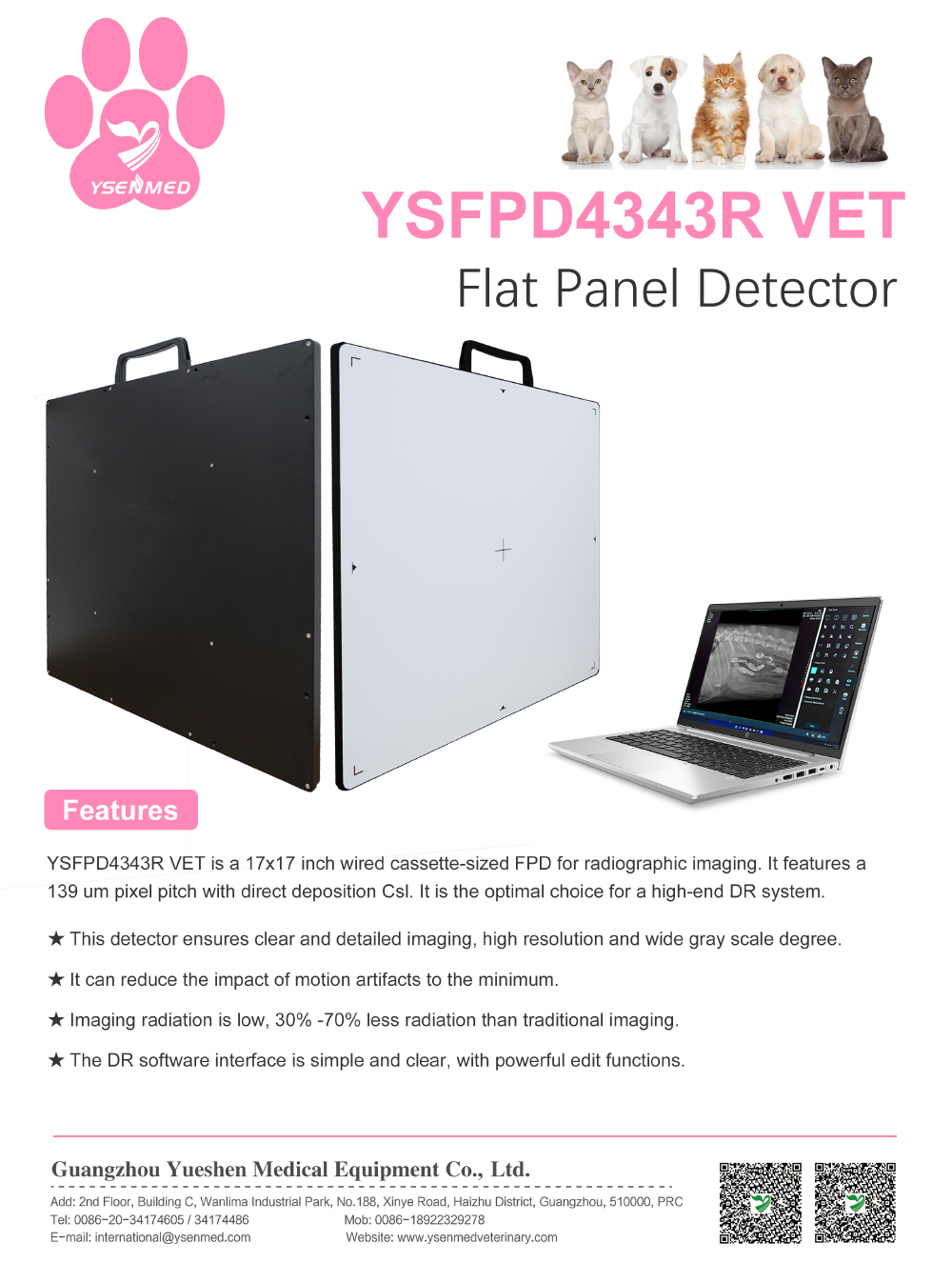

    Features
    YSFPD4343R VET is a 17x17 inch wired cassette-sized FPD for radiographic imaging. It features a139 um pixel pitch with direct deposition Csl. It is the optimal choice for a high-end DR system.
    This detector ensures clear and detailed imaging, high resolution and wide gray scale degree.
    It can reduce the impact of motion artifacts to the minimum.
    Imaging radiation is low, 30%-70% less radiation than traditional imaging.

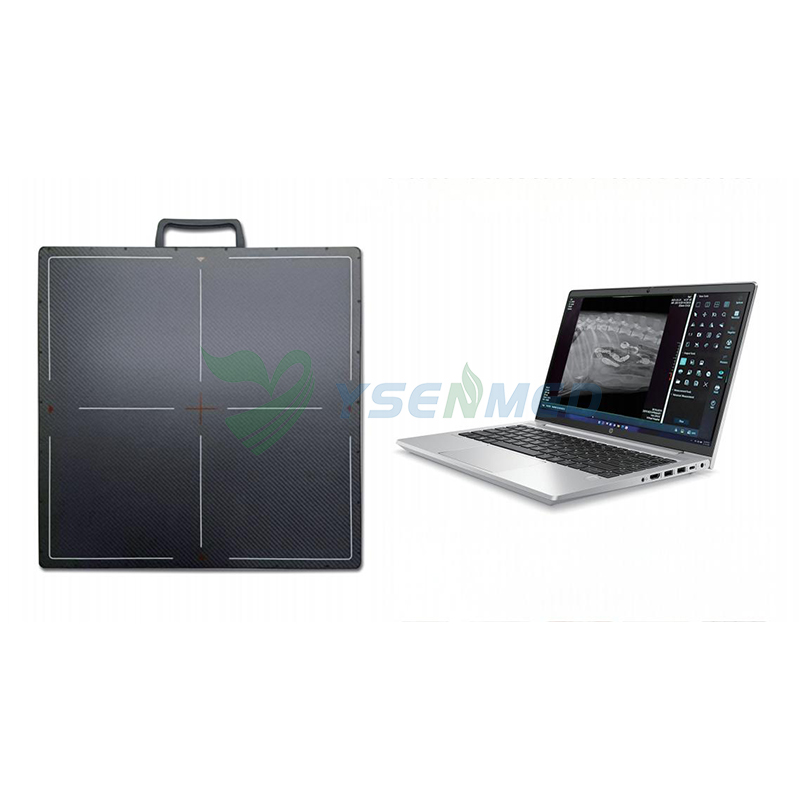

    The DR software interface is simple and clear, with powerful edit functions.

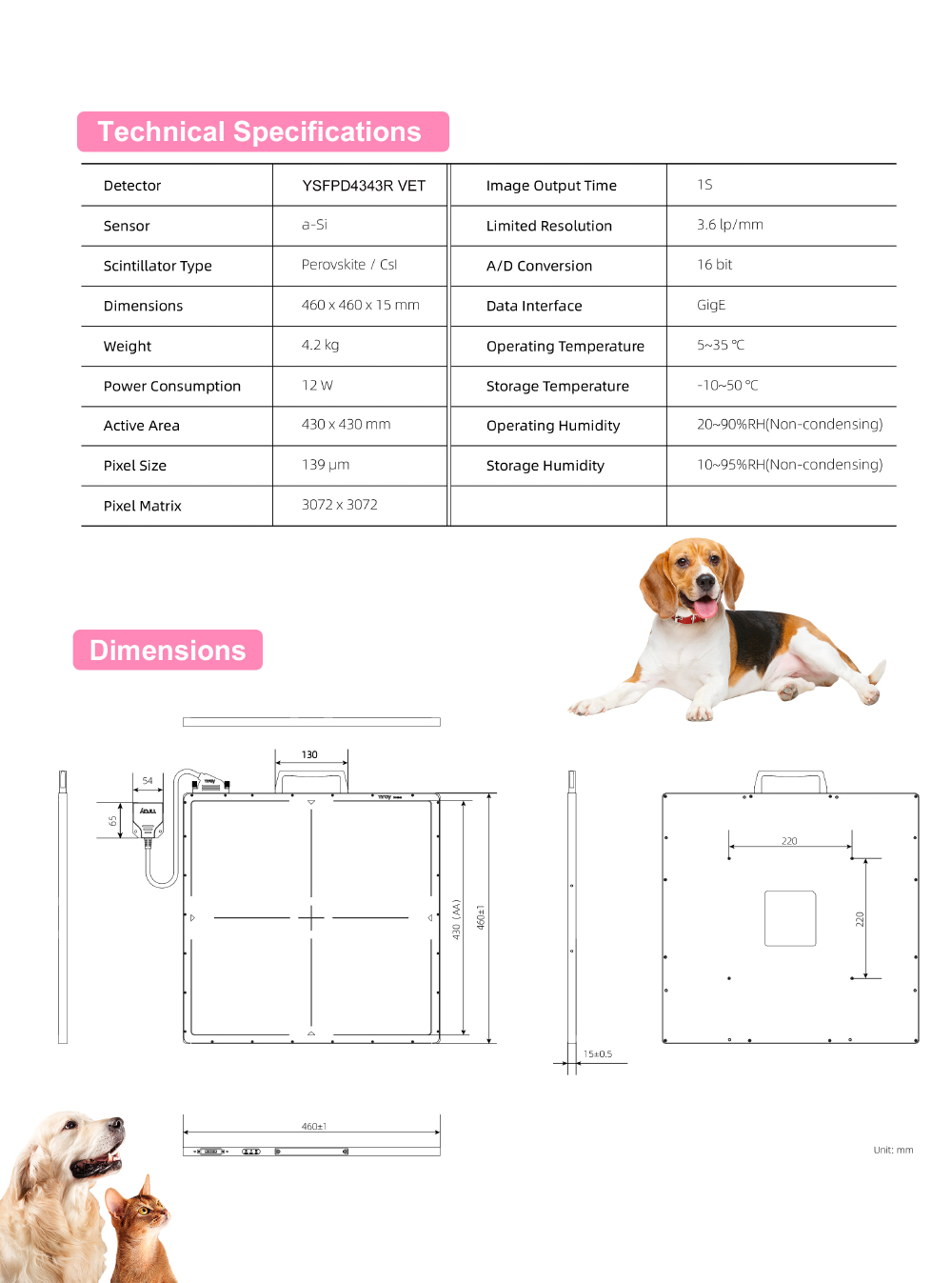

    Technical Specifications
    Detector YSFPD4343R
    Image Output Time 1S
    Sensor a-Si
    Limited Resolution 3.6 lp/mm
    Scintillator Type Perovskite / Csl
    A/D Conversion 16 bit
    Dimensions 460x460x15 mm
    Data Interface GigE
    Weight 4.2 kg
    Operating Temperature 5~35 °C
    Power consumption 12 W
    Storage Temperature -10~50°C
    Active Area 430x430 mm
    Operating Humidity 20~90%RH(Non-condensing)
    Pixel Size 139 μm
    Storage Humidity 10~95%RH(Non-condensing)
    Pixel Matrix 3072 x 3072
