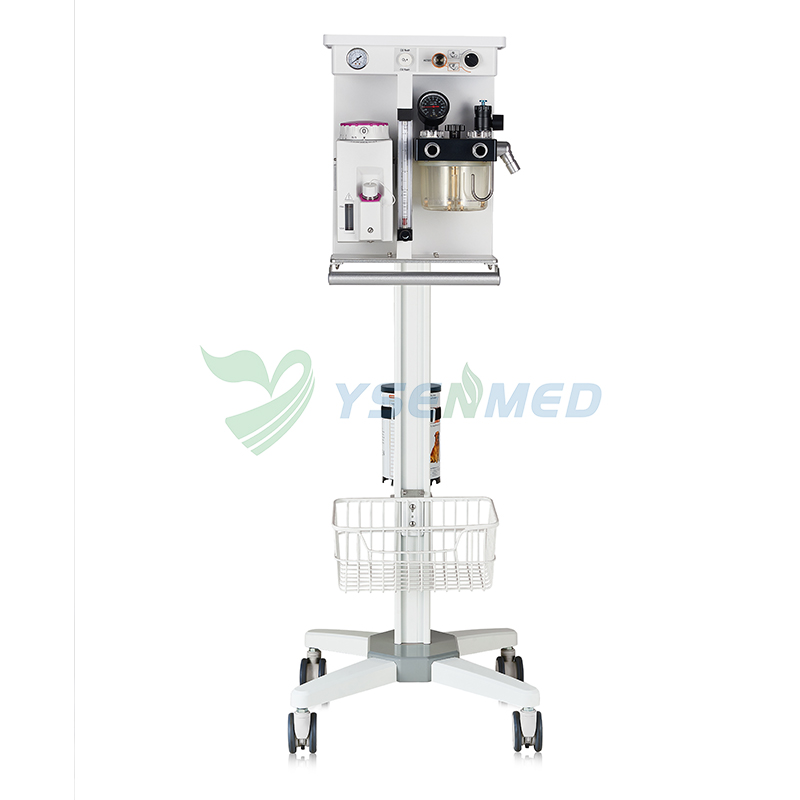

YSAV710MR Plus VET
MRI Compatible Veterinary Anesthesia Machine with Ventilator
YSAV710MR Plus VET is used for MRI environment, it is MRI veterinary anesthesia machine with MRI anesthesia ventilator together. It is gas driving gas control anesthesia ventilator, it has time control, tidal volume control and pressure monitor, and it can be used for 1kg to 100kg animal.
Specifications:
MRI Anesthesia Machine:
Gas source: 0.4Mpa,
O2 flush：20-75L/m；
Flow Meter:0-4L/min;
CO2 circle absorber: Airway pressure gauge:-20cmH2O-100cmH20
Pop Off valve: adjustable easily, with one blue button to close or open this valve quickly
Inspiration valve and expiration valve: visible dome- type, ISO standard port, diameter 22mm
Soda lime chamber:0.8 Liter, easy to change soda lime within one minute
ACGO: open breath system, like Bains circuit and Jackson circuit
MRI Anesthesia Ventilator:
Gas driving gas control;
Inspiration time: 0.2-2s;
Expiration time: 0.5-4s;
Tidal volume: 250ml/s-1000ml/s;
Pressure sample monitor;
Pressure gauge: -20cmH2O-100cmH2O;
On/OFF Switch;
Standard Configuration:
1 unit anesthesia machine;
1 unit anesthesia ventilator;
1 unit Normal control valve for normal animal (5-100kg animal);
1 unit Adult bellow;
1 unit Silicon tube(1m,D22), 1 unit silicon tube with adaptor(0.6m,D17), 1unit O2 gas source pipeline, 1 unit Pressure sample tube;
2 units breath circuits;
1 unit open breath circuit;
0.5,1,2,3 airbag;
1 unit Isoflurane anesthesia vaporizer (selectatec, pour fill);
1 unit gas source pipeline for anesthesia machine;
1 unit gas source pipeline for ventilator;
1 unit trolley;
Option:
1 unit Small control valve for small animal(1-5kg animal)(option);
1 unit pediatric bellow(option);
1 unit silicon tube with adaptor(0.6m,D17)(option);
The packing information:
Anesthesia machine with anesthesia vaporizer: 66cm*34cm*48cm, gross weight: 21kg;
Anesthesia ventilator: 81cm*33cm*41cm, gross weight: 15kg;
Trolley: 68cm*58cm*25cm, gross weight: 9.5kg;
