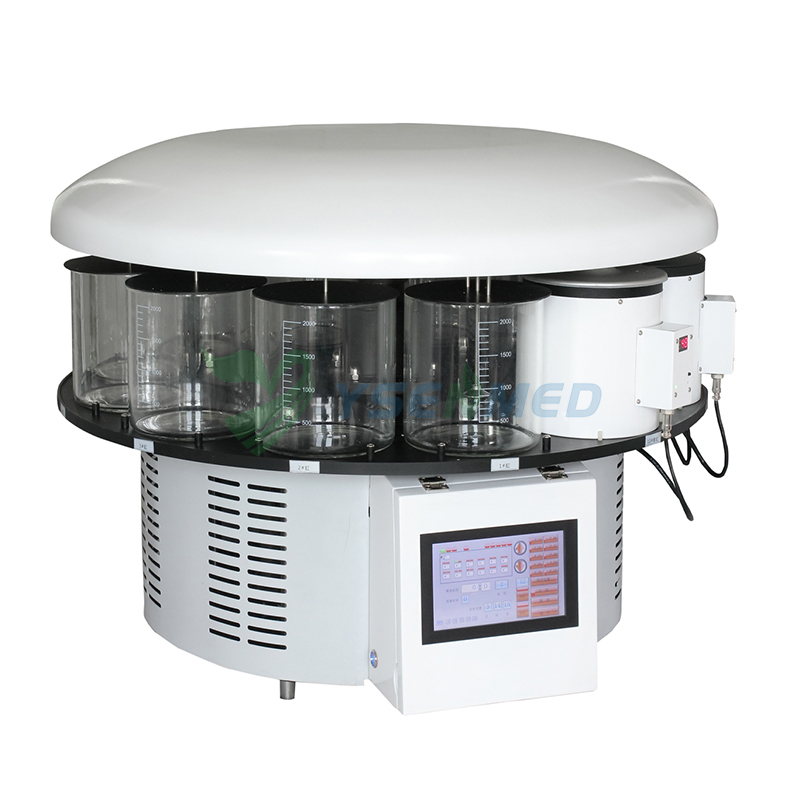

Medical Laboratory Pathology Vacuum Spin Tissue Processor YSPD-TS569

Model: YSPD-TS569
Streamline lab workflows with the YSPD-TS569 spin tissue processor. It offers intuitive PLC control, a 7-inch LCD screen, 10 programmable cycles, and optional UPS backup protection.
  • ModelYSPD-TS569
  • BrandYSENMED
  • PriceContact us
  • MOQ1
  • Ship FromGuangzhou, China
  • ShippingAir/Sea
  • Description Get Price Review(0)

    Medical Laboratory Pathology Vacuum Spin Tissue Processor YSPD-TS569


    Features:
    1. Adopt Japan Mitsubishi PLC to control the whole working process, easy to operate, stable and reliable work
    2. The starting cylinder can be set and has the function of customizing the cylinder position
    3. Have optional function that can provide power -off protection (UPS).
    4. Agitation-based tissue processing ensures thorough contact between tissue specimens and reagents, providing efficient and uniform dehydration.
    5. Large LCD screen showing every step of processing and easy for monitoring, 160*90mm (7inch)
    6. Time setting range:Supports scheduled startup on any selected day or at a preset time every day., the working time of each cylinder can be up to 999 minutes, the minimum is 1 minute for the 1st and 12th cylinders, and the minimum is 0 for the rest
    7. Constant temperature controlling system adopted on the paraffin jar to ensure high precision of temperature controller. Internal surface oxidation treatment.
    8. There are 10 programs selectable
    9. A backup power supply can be optionally configured according to customer requirements.
    10.Anti-collision stopping device for hanging basket.

    Main Technical Data:
    1. Carousel type with 12 stations,9 reagent container, 3wax paraffin container
    2. Standard tissue baskets:1 (2 optional)
    3. Standard tissue basket capacity:max135 cassettes (270 cassettes optional)
    4. Capacity: 2.3 L for reagent container, 2.1 L for wax paraffin container
    5.Paraffin bath temperature range: 20–85°C (customizable upon request).
    6. Tissue basket stirring 1 minute interval every 5 minutes.
    7. Easy editing and changing of programs even during a processing run
    8. Vacuum device pressure difference: max 0.05 Mpa (approx 0.5 bar)
    9. Standard tissue baskets: Size: Φ125X112mm
    10. Instrument dimension: Φ835 x 610 mm
    11. Carousel lid: 800 mm Ø
    12. Nominal voltage: AC220 V 50HZ/AC110V 50HZ   Nominal frequency: 50Hz
    13. Power: 400~500W
    14. Net Weight: 72kg
    15. Dimensions: 780*570*690mm
    Standard Configuration List
    1. Reagent bottle   9 pcs
    2. Paraffin wax tank   3 pcs
    3. Paraffin wax tank connection line   3 pcs
    4. Tissue basket   1 pc
    5. Tissue cassette   20 pcs
    6. Hexagonal Wrench   1 pc
    7. Screwdriver   1 pc
    8. Fuse (5A)   2 pcs
    9. Power line   1 pc
    Optional Accessories
    1. Extra paraffin tank
    2. Extra reagent tank
    Package Info:
    Each instrument packed Wooden Case
    Packing Size (for machine):885*885*770mm
    Packing Size (for tanks): 620*410*530mm,
    Gross Weight: 117 kg (Bubble goods to 150 kg)
