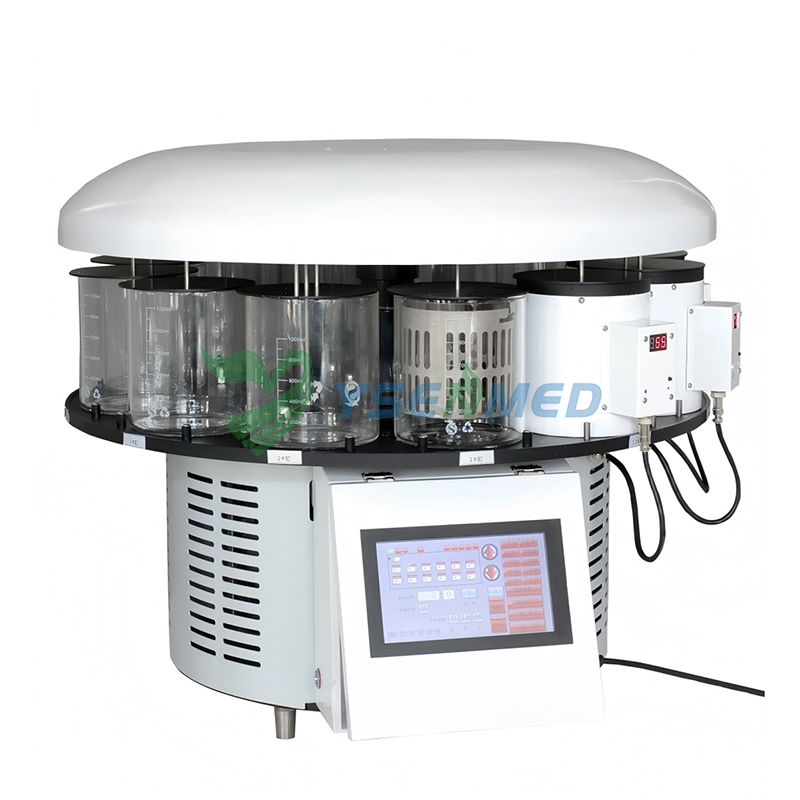

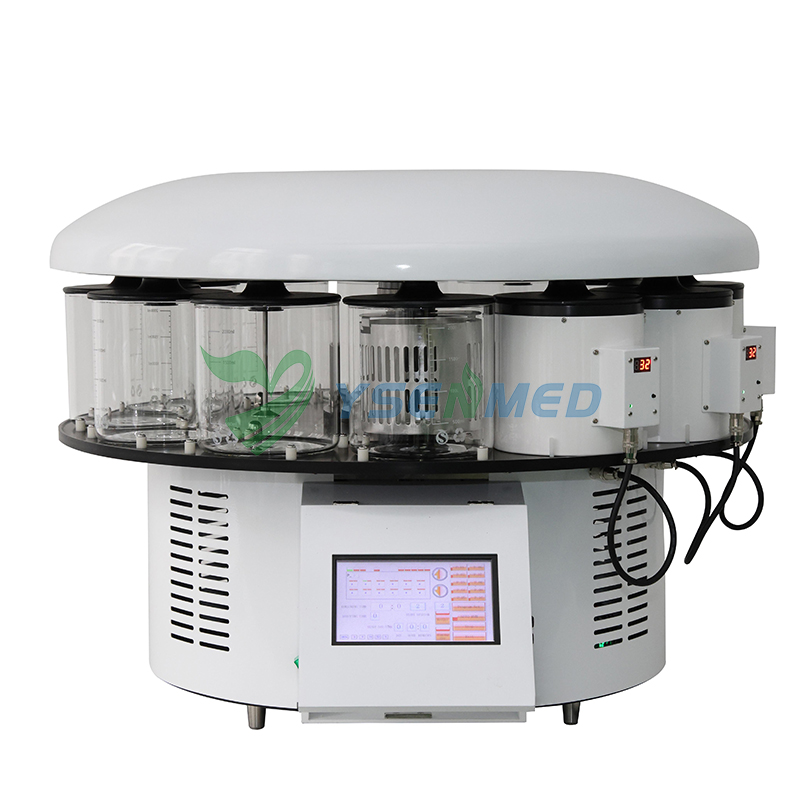

Medical Laboratory Pathology Vacuum Carousel Tissue Processor YSPD-TS566

Model: YSPD-TS566
High-capacity automated tissue processor supporting up to 130 cassettes, 12 processing steps, and flexible programming for busy diagnostic labs.
  • ModelYSPD-TS566
  • BrandYSENMED
  • PriceContact us
  • MOQ1
  • Ship FromGuangzhou, China
  • ShippingAir/Sea
  • Description Get Price Review(0)

    Medical Laboratory Pathology Vacuum Carousel Tissue Processor YSPD-TS566


    Features:
    1. Adopt Japan Mitsubishi PLC to control the whole working process, easy to operate, stable and reliable work
    2. The starting cylinder can be set and has the function of customizing the cylinder position
    3. Have optional function that can provide power -off protection (UPS).
    4. Agitation-based tissue processing ensures thorough contact between tissue specimens and reagents, providing efficient and uniform dehydration.
    5. Large LCD screen showing every step of processing and easy for monitoring, 160*90mm (7inch)
    6. Time setting range:Supports scheduled startup on any selected day or at a preset time every day., the working time of each cylinder can be up to 999 minutes, the minimum is 1 minute for the 1st and 12th cylinders, and the minimum is 0 for the rest
    7. Constant temperature controlling system adopted on the paraffin jar to ensure high precision of temperature controller. Internal surface oxidation treatment.
    8. There are 10 programs selectable
    9. It can be equipped with power supply according to user requirements, and can operate for 4-16 hours for other functions besides wax bath after power failure to ensure the safety of the organization
    10.Anti-collision stopping device for hanging basket.


    Main Technical Data:
    1. Steps of processing tissue: 12 steps.
    2. Glass container: Quantity—9capacity-1.2L.
    3. Wax container: quantity—3capacity—1.1L.
    4. Paraffin bath temperature range: 20–85°C (customizable upon request).
    6. Conditions of use: Ambient temperature: +5℃~40; Ambient humidity: <85% (at 20±5℃)
    7. Standard tissue baskets:1 (2 optional)
    8. Standard tissue basket capacity:max 65 cassettes (130 cassettes optional )
    9. Vertical reciprocative motion of tissue basket: 3 times/min
    10. Tissue basket specification: Barrel tissue basket--Φ100X94mm.
    11.Timed agitation of the tissue basket.
    12. Power: 400~500W
    13. Rated voltage: AC220 V 50HZ /AC110V 50HZ
    14. Net Weight: 57kg
    15. Carousel lid: 695 mm Ø
    16. Dimensions: Φ695 x 550*680mm

    Standard Configuration List
    1. Reagent bottle   9 pcs
    2. Paraffin wax tank   3 pcs
    3. wax tank connection line   3 pcs
    4. Tissue basket   1 pc
    5. Tissue cassette   20 pcs
    6. Hexagonal Wrench   1 pc
    7. Screwdriver   1 pc
    8. Fuse (5A)   2 pcs
    9. Power line   1 pc
    Optional Accessories:
    1. Vacuum
    2. Extra paraffin tank
    3. Extra reagent tank

    Package Info:
    Each instrument packed Wooden Case
    Packing Size (for machine):760*740*710 mm,
    Packing Size (for tanks) :600*400*540mm
    Gross Weight: 87 kg
