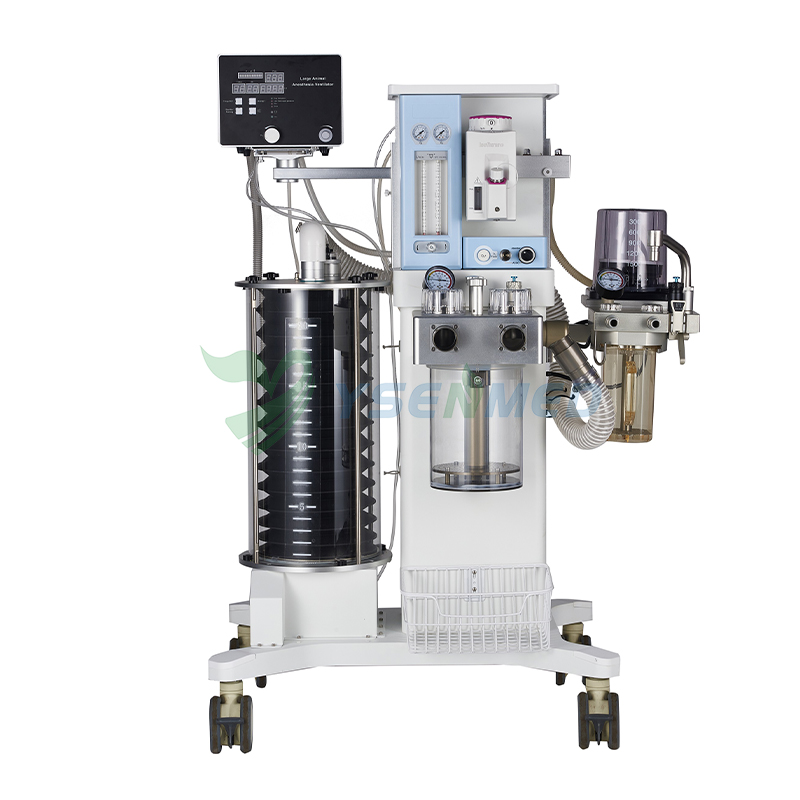

YSAV790B Plus VET
Large Animal Anesthesia Machine


YSAV790B Plus VET model is an excellent large animal anesthesia machine. It is specially used for large animal, like horse, cow, tiger, pig etc. It can be used in farm, zoo, wild animal zoo, forest park, animal research center and so on.

Large Animal Anesthesia Machine
Specification:
Inspiration mode: open mode, closed mode, semi-open and semi-closed mode
Gas source:O2,0.4Mpa
O2 Flush valve:25L/min--75L/min
Flow meter: high precision O2 flow meter, 0--1L--10L/min, O2&Air(O2&N2O) two tubes flow meter is option.
CO2 circle absorber: with soda lime chamber, Pop off valve, airway pressure gauge, inspiration valve and expiration valve, the inspiration and expiration valve is demo-type and visible.
Airway pressure gauge: -20cmH2O--100cmH2O &-2Kpa--10Kpa
Soda lime chamber:8Liter, it is easy to change soda lime and used for over 1000kg animal.
ACGO: it is used for open breath circuit, connect with Jackson breath circuit or bains breath circuit. It can be used less than 5kg animal.
One key switch between CO2 circle Absorber and ACGO.
Double selectatec compatiable mounting bar.
Anesthesia vaporizer: Isoflurane and Sevoflurane, standard configuration: one Isoflurane vaporizer.
AGSS: connect to central exhaust system,It is optional.
O2 Cylinder plate/place is on the back: a cylinder can be installed on this plate, the back of machine to move together.
Exhaust gas filter plate is on the back: it will install exhaust gas canister.
AC600 CO2 circle absorber for foal and small animal: it is on the right side, it is optional.
One key switch between AC500 and AC600 CO2 circle absorber

Large Animal Anesthesia Ventilator
Specification:
Driving type: Gas Driving Electronic Control
Driving gas: O2 or Air, 0.35Mpa-0.6Mpa, max flow more than 400l/Min at 0.35Mpa
Breath Mode: IPPV
Inspiration time: 0.2-10S
Breath Rate: 2-80
Tidal Volume: 0-20L
Airway Pressure Gauge Monitor:0-99cmH2O
PEEP: when PEEP is more than 5cmH2O, Pop Off valve will be open
Bellow: 20L
Inner Battery: it will work 3 hours
Power: AC100-240V,50-60HZ

Alarm Parameters:
Gas source alarm: when gas source pressure is less than 0.35Map, it will alarm;
AC power alarm: when AC power is faulty, it will alarm;
IRV alarm: when I:E is IRV ventilation, it will alarm;
Low Battery: when inner batter is low, it will alarm;

Standard configuration:
Large Animal Anesthesia Machine, Large Animal Anesthesia Ventilator, one Isoflurane anesthesia vaporizer, one set big breath circuit, one 15L airbag, one O2 gas source pipeline, one unit power cable, one set exhaust tube and some accessories.

Packing information:
Packing size (wooden box): 100cm*100cm*161cm
Gross weight: 181kg;
