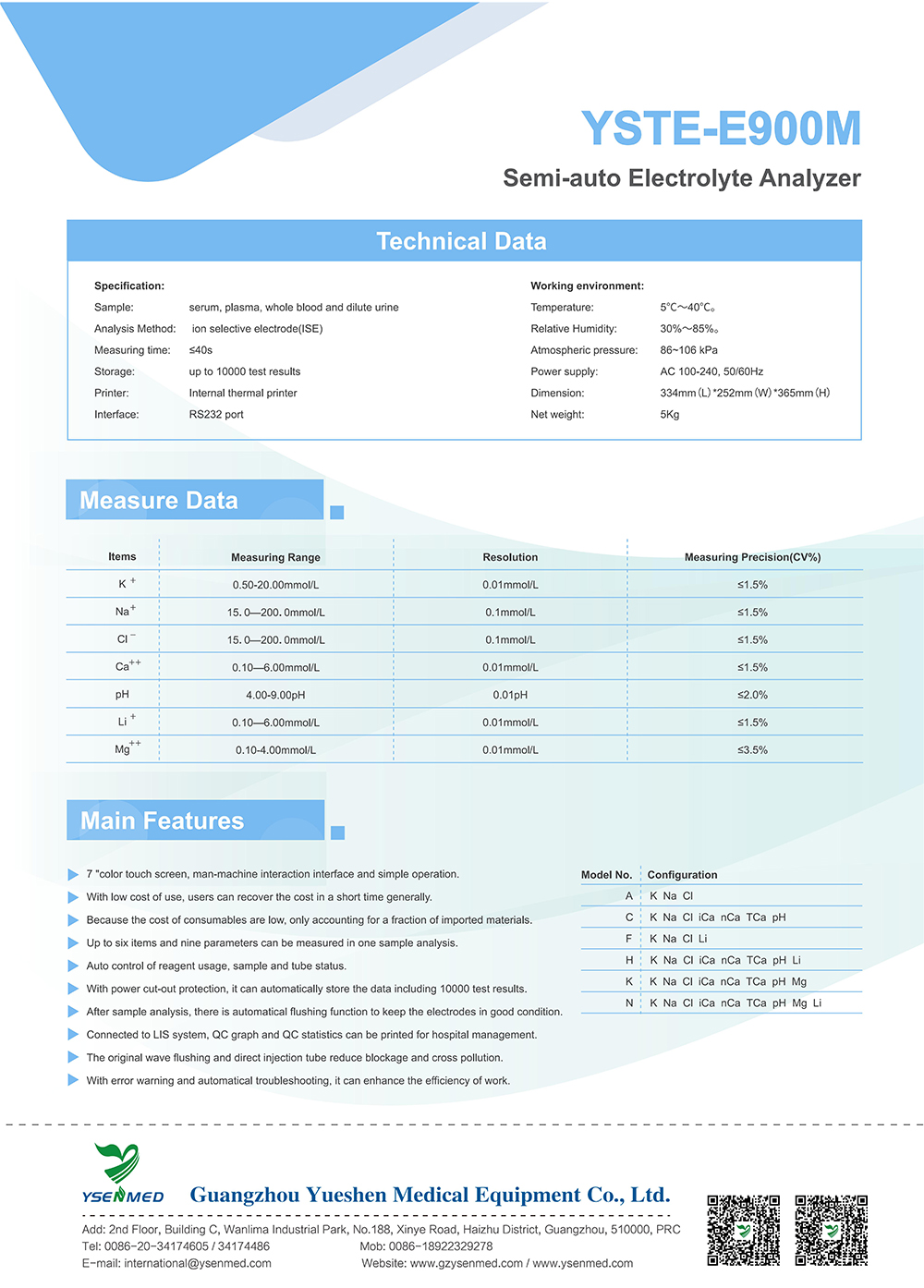

Medical Laboratory Electrolyte Analyzer Technical Data
Specification
Sample: serum, plasma, whole blood and dilute urine
Analysis Method: ion selective electrode(ISE)
Measuring time: ≤40s
Storage: up to 10000 test results
Printer: Internal thermal printer
Interface: RS232 port
Medical Laboratory Electrolyte Analyzer Working environment
Temperature: 5°C~40°C
Relative Humidity: 30%~85%
Atmospheric pressure: 86~106 kPa
Power supply: AC 100-240, 50/60Hz
Dimension: 334mm(L)*252mm(W)*365mm (H)
Net weight: 5Kg
Medical Laboratory Electrolyte Analyzer Measure Data
Items Measuring Range Resolution Measuring Precision(CV%)
K+ 0.50-20.00mmol/L 0.01mmo/L ≤1.5%
Na+ 15.0-200.0mmol/L 0.1mmol/L ≤1.5%
Cl- 15.0-200.0mmol/L 0.1mmol/L ≤1.5%
Ca++ 0.10-6.00mmol/L 0.01mmolL ≤1.5%
pH 4.00-9.00pH 0.01pH ≤2.0%
Li+ 0.10-6.00mmol/L 0.01mmolL ≤1.5%
Mg++ 0.10-4.00mmol/L 0.01mmolL ≤3.5%
Medical Laboratory Electrolyte Analyzer Main Features
7 "color touch screen, man-machine interaction interface and simple operation.
With low cost of use, users can recover the cost in a short time generally.
Because the cost of consumables are low, only accounting for a fraction of imported materials
Up to six items and nine parameters can be measured in one sample analysis
Auto control of reagent usage, sample and tube status
With power cut-out protection, it can automatically store the data including 10000 test results
After sample analysis, there is automatical flushing function to keep the electrodes in good condition
Connected to LIS system, QC graph and QC statistics can be printed for hospital management.
The original wave flushing and direct injection tube reduce blockage and cross pollution
With error warning and automatical troubleshooting, it can enhance the efficiency of work
