Technical Parameters
|
|
1
|
Specification
|
YSOT-LED70A
|
YSOT-LED50A
|
|
2
|
Illuminance（adjustable）
|
40000-160000Lux
|
40000-16000Lux
|
|
3
|
Color Temp（Adjustable）
|
3000K-6700K
|
3000K-6700K
|
|
4
|
Color rendering Index(Ra)
|
85-100
|
85-100
|
|
5
|
Light beam depth
|
≥400mm
|
≥400mm
|
|
6
|
Diameter of spot
|
≥120mm
|
≥120mm
|
|
7
|
Lamp type
|
LED
|
LED
|
|
8
|
Lamp bulb quantity
|
80 pcs
|
48 pcs
|
|
9
|
LED lamp power
|
130VA
|
130VA
|
|
10
|
LED bulb life
|
≥50000h
|
≥50000h
|
|
11
|
Temp rise(Operator head)
|
﹤1℃
|
﹤1℃
|
|
|
Supply voltage
|
AC220V 50HZ
|
AC220V 50HZ
|
|

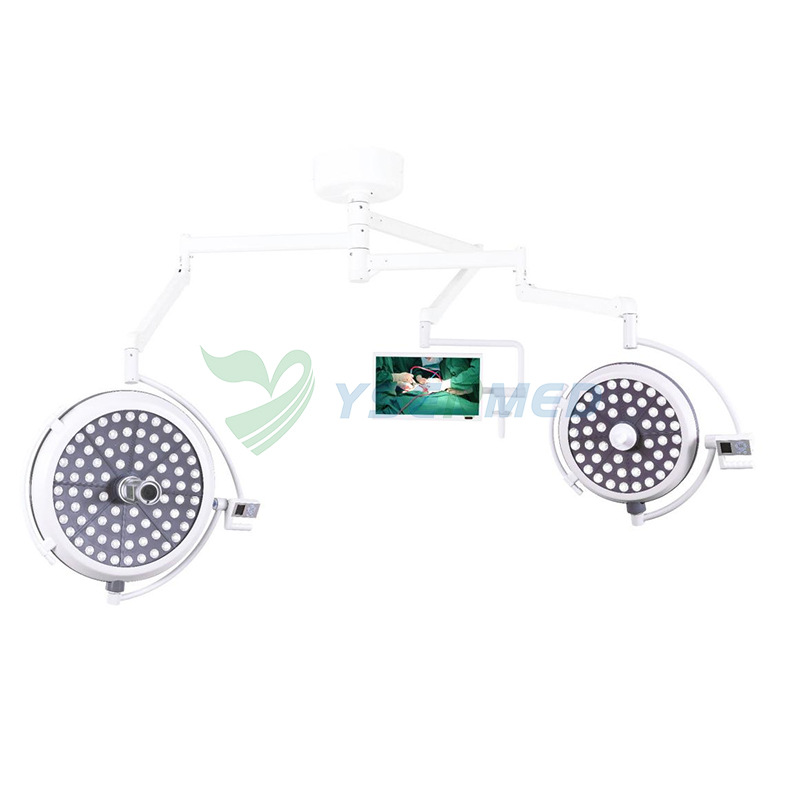

Main technical parameters of shadowless lamp camera system
|
|
|
Technical parameters of surgical camera
|
|
1
|
It has a CMOS sensor of no less than 1/2.8 inch with an effective pixel of no less than 4 million; (provide the national radio and television test report)
|
|
2
|
Full HD central camera system, the lamp disk is the central camera position, the camera is located at the center point of the lamp head, consistent with the lighting area, the field of view is accurately positioned, the body has operation keys, the picture can rotate without turning the shadowless lamp head;
|
|
3
|
The body supports the control panel, and the body adopts the integrated design with the control button, which is not dust accumulation and easy to clean. The body button supports one-click operation such as lens zoom, focus, mode switching, menu display and power switch;
|
|
4
|
Using intelligent brand-name high-definition cameras, the system employs SDI digital signal transmission for real-time video transmission. This prevents video interruptions or delays that can occur in network camera systems, thus avoiding incorrect information. The central and front-end systems are completely isolated to prevent network intrusions caused by network cameras. The cameras must support switching between shadowless mode, normal mode, and strobe mode.
|
|
5
|
Support fast start and low latency function, start time less than 10s, no compressed HD video, built-in ND filter, strong light suppression, no flicker;
|
|
6
|
Designed according to medical electrical standards, the electrical and material characteristics are stable and reliable.
|
|
7
|
Supports the use in different environments such as strong light of shadowless lamp and daily indoor light. It can record open surgery and minimally invasive surgery to meet the needs of hospital teaching;
|
|
8
|
You can choose 2.4G wireless or infrared remote control according to your needs, which is convenient for medical staff to adjust and use.
|
|
9
|
RS485 should be supported to assist the control of the camera; the on/off control can be carried out through the power button of the body to protect patient privacy.
|
|
10
|
Can be connected to the projector, display on a screen of more than 100 inches;
|
|
11
|
Supports remote control, flexible access, RS485 communication interface, VISCA, Pelco P/D and other communication protocols, wall control, joint debugging, digital operating room remote control, through computer or professional operating room controller.
|
|
|
Record terminal technical parameters (storage and display part)
|
|
12
|
It is equipped with a 22-inch 1080P LCD screen, integrating audio and video access, output, storage, display and local operation functions. The integrated design supports mouse and infrared remote control operation and control; it adopts embedded system architecture technology, stable and efficient operation, and prevents virus infection and hacker attack;
|
|
13
|
Supports 3G-SDI HD video input interface, and supports 4 channels of 1080P HD network video access preview and storage.
|
|
14
|
Adopt high quality AAC audio coding technology, support audio 1 in 1 out, and built-in stereo speakers;
|
|
15
|
Supports external HDMI and VGA monitors to achieve extended display output;
|
|
